我希望用砖包覆的R-40墙，一个“排水空间，3”的箔面对聚四诺，控制层，½“胶合板护套，一个填充绝缘的2x6螺柱壁，和......”GWB“。进入我想使用所谓的“杜曼特窗口”（见附件）所以为Toronto的建筑师罗伯特·杜曼特命名。有谁有我可以向我的建筑商提供的那个窗口的细节吗？
GBA详细资料库
一千年建筑细节的集合organized by climate and house part
搜索和下载施工细节
Replies
泰德 - 他的墙壁比你的墙更厚（他是16英寸的“我相信）。在他家里的双壁墙壁，张开开口的侧壁并不是很棘手。你的墙上你必须拥有窗户更宽的粗糙开口，使得2x6的内边缘比窗口内侧的边缘宽。从绝缘的角度来看，我同意它看起来很好。我假设你're询问张开的窗口，而不是窗口本身。我怀疑杜曼特对此看起来有任何权利。
Ted,
Rob Dumont住在萨斯卡通，而不是多伦多。
我从未听过任何人都指的是“Dumont窗口”。在他2000年5月的经典文章中关于他在萨斯卡通的SuperInged House，“世界上最好的绝缘房子？”, Dumont doesn't provide many details about his windows, other than to mention that he specified "Triple-glazed windows with two low-e coatings, argon gas fill, low conductivity spacer bars, and wood frames."
For more information on Dumont's house, seeRobert Dumont在萨斯卡通的超山房子。
Ted,
看来，图片中的窗口使用“热镜”IGU - 由于图像中IGU的边缘并不是真的清楚的，因此不是100％确定。
Heat mirror uses LowE coated PET film layer (or layers) between two outer lites rather than multiple glass layers.
The window in the picture appears to have two PET layers so that the overall performance would be equivalent to a quadruple pane IGU - except the PET film layers allow the window to be narrower and lighter than it would be if all four layers were glass.
Again, not 100% certain since the close-up of the IGU edge wasnt clear, but I suspect that's what it is.
我很抱歉我缺乏清晰度，尽管我感谢你的回应。我已经选择了Alpen高性能窗口。
我对我感兴趣的细节是木制框架，干墙，护套，窗口降压和外部绝缘，使窗口开放的剧烈外观成为可能。我的墙壁可能不会像罗伯特·杜蒙那样深入，但我想达到同样的效果。
注意其他附件。
Ted,
The work is fairly straightforward for most framers and trim carpenters. Plan for a splayed opening; sketch it out before you frame it.
Implementing this approach will be different with (for example) a 2x8 wall than with a double-stud wall. In any case, the interior opening needs to be wider than the window rough opening; shim as necessary, and install drywall returns and an interior stool.

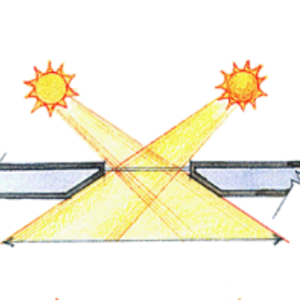

TED，您称之为Dumont窗口的曲线有很多变化 - 包括倾斜的门果酱，其中它可以使用它，使门可以打开90度。比其他人更戏剧，比如芭节建筑师着名的普克房子http://www.patkau.ca/project/pyrch.htm#。
As Kevin pointed out, what most of them share is very thick walls. This is important because there is an energy penalty to sloping the walls in to the window frame, and there is a minimum that you practically want left for insulative purposes at that junction. If you leave a reasonable thickness at the window and the wall isn't that deep, you don't end up with much of a slope.
我不确定您会发现任何标准细节，这将有助于您的情况，因为外部刚性绝缘体相当复杂化。您需要一个架构师来处理一些含有所需光的变化，并且仍然保持信封的完整性。
我有点做自己的图画。

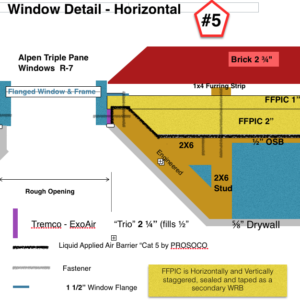

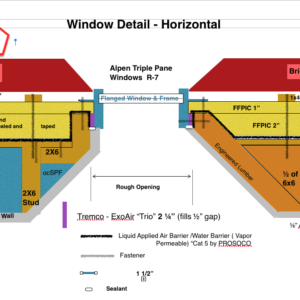

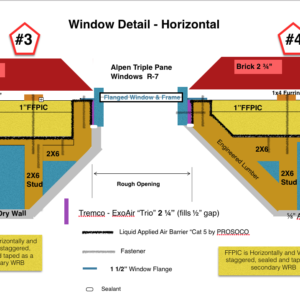

这里有5个不同的细节，这与成比例相当接近，我认为我会给我一个喇叭口开口和窗户凳。我很欣赏所有读者的投票。您会投票为建立最稳定和最经济的投票吗？
投票＃1，＃2，＃3，＃4或＃5
评论和建议也会受到赞赏。
我不确定我最喜欢哪一个，但我喜欢这个想法。它将允许更大的视线望着窗外，而不是站在它面前。
图纸都很大，但我会在可能的情况下使用更多的3/4“胶合板来重绘它们。也限制了千斤顶螺栓的数量，绝缘了标题或将它们放在墙上的框架上。很多技巧。你会劳动帮助成本切割。穿上工具包，享受较少的道路。
Further to AJ's comments, the details need to show the king and jacks studs to carry the header, and I'd try and eliminate as far as possible all the angled cuts. In general framing is detailed so it can be built with the common tools available on site using dimension lumber. Having to cut window framing package on a table saw is extremely unusual.
