Mounting evidence suggeststhe western United States is now in its worst megadroughtin at least 1200 years. Groundwater supplies arebeing overpumpedin many places, and the dryness, wildfires, and shrinking water supplies are makingclimate changepersonal for millions of people.

Asan engineer, I have been working with colleagues on a way to both protect water supplies and boost renewable energy to protect the climate.

We call it the solar-canal solution, and it’s about to be tested in California.

About4000 miles of canalstransport water to some 35 million Californians and 5.7 million acres of farmland across the state. As weexplained in a 2021 study, covering these canals with solar panels would reduce evaporation of precious water—one of California’s most critical resources—and help meet the state’s renewable energy goals, while also saving money.

Thefirst prototypes in the U.S.for both wide-span and narrow-span canals are now in development in California’s Central Valley. Researchers at the University of California, Merced, are involved in the project, and we will be trying to determine how this can become a large-scale solution.

Conserving water and land

California isprone to drought, and water is a constant concern. Now, the changing climate is bringing hotter, drier weather.

Severe droughts over the past 10 to 30 yearsdried up wells, caused officials to implement水restrictions, and fueledmassive wildfires.

At the same time, California has ambitious conservation goals. The state has a mandate toreduce groundwater pumpingwhile maintaining reliable supplies to farms, cities, wildlife, andecosystems. As part of a broad climate change initiative, in October 2020 Gov. Gavin Newsom directed the California Natural Resources Agency to spearhead effortsto conserve 30% of land and coastal waters by 2030.

Most of California’s rain and snow falls north of Sacramento during the winter, while 80% of its water useoccurs in Southern California, mostly in summer. That’s why canals snake across the state–it’s the largest such system in the world. We estimate that about 1%-2% of the water they carry is lost to evaporation under the hot California sun.

In a 2021 study, we showed that covering all 4000 miles of California’s canals with solar panels wouldsave more than 65 billion gallons of water annuallyby reducing evaporation. That’s enough to irrigate 50,000 acres of farmland or meet the residential water needs of more than 2 million people. By concentrating solar installations on land that is already being used, instead of building them on undeveloped land, this approach would help California meet its sustainable management goals for both水andlandresources.

Climate-friendly power

Shading California’s canals with solar panels would generate substantial amounts of electricity. Our estimates show that it could provide some 13 gigawatts of renewable energy capacity, which is about half of the new sources the state needs to add to meet itsclean electricity goals从无碳能源,2030年:60%100% renewable by 2045.

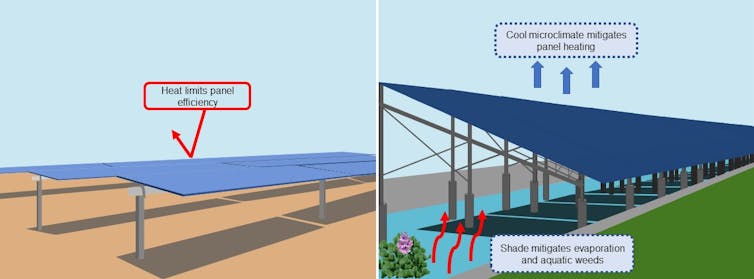

Installing solar panels over the canals makes both systems more efficient. The solar panels would reduce evaporation from the canals, especially during hot California summers. And because water heats up more slowly than land, the canal water flowing beneath the panels could cool them by 10°F,boosting production of electricity by up to 3%.

These canopies could alsogenerate electricity locallyin many parts of California, lowering bothtransmission lossesand costs for consumers. Combining solar power with battery storage can help build microgrids in rural areas and underserved communities, making the power system more efficient and resilient. This would mitigate the risk of power losses due to extreme weather, human error, and wildfires.

We estimate that the cost to span canals with solar panels will be higher than building ground-mounted systems. But when we added in some of the co-benefits, such as avoided land costs, water savings, aquatic weed mitigation, and enhanced PV efficiency, we found that solar canals were a better investment and provided electricity that cost less over the life of the solar installations. And this is before factoring in the human health benefits of improved air quality and reduced greenhouse gas emissions.

Benefits to the land

To be clear, solar canals are about much more than just generating renewable energy and saving water. Building these long, thin solar arrays could prevent more than 80,000 acres of farmland or natural habitat from being converted for solar farms.

California grows food for an ever-increasing global population andproduces more than 50% of the fruits, nuts, and vegetablesthat U.S. consumers eat. However, up to 50% of new renewable energy capacity to meet decarbonization goals could besited in agricultural areas, including large swaths of prime farmland.

Solar canal installations will also protect wildlife, ecosystems, and culturally important land. Large-scale solar developments can result inhabitat loss, degradation, and fragmentation, which can harm threatened species such as theMojave Desert tortoise.

They also canharm desert-scrub plant communities, including plants that are culturally important to Indigenous tribes. As an example, construction of theGenesis Solar Energy Centerin the Sonoran and Mojave deserts in 2012-2014destroyed trails and burial sites and damaged important cultural artifacts, spurring protracted legal conflict.

Clearing the air–and the weeds

By generating clean electricity, solar canals can improve air quality.

Another benefit is curbing aquatic weeds that choke canals. InIndia, where developers have been building solar canals since 2014, shade from the panels limits growth of weeds that block drains and restrict water flow.

Fighting these weeds is expensive, and herbicides threaten human health and the environment. For large, 100-ft-.wide canals in California, we estimate that shading canals would save about $40,000 per mi. Statewide, savings could reach $69 million per year.

Bringing solar canals to California

加州的电力基础设施老化contributed to catastrophic wildfires and multiday outages. Building smart solar developments on canals and other disturbed land can make power and water infrastructure more resilient while saving water, reducing costs, and helping to fight climate change.

Turlock Irrigation District, in California’s San Joaquin Valley, will build the first solar canal prototype in partnership with project developer Solar Aquagrid, researchers, and others and is supported by the state Department of Water Resources.

The prototypes in this mile-long demonstration project, along with future pilots, will help operators, developers, and regulators refine designs, assess co-benefits, and evaluate how these systems perform. With more data, we can map out strategies for extending solar canals statewide, and potentially across the West.

---

Roger Bales is Distinguished Professor of Engineering at the University of California, Merced. This post, originally published atThe Conversation, is an updated version of an article originally posted in May 2021.
